PLE1-2,2

power controler up to. 2.2 kW / 230 V
direkt assembly on top-hat rails
terminal connections
output adjustment 0…100 % with potentiometer or with 0…10 V DC signal
output voltage 15…230 V AC
protection class IP20
ambient temperature -10…+40°C
weight approx. 0.65 kg

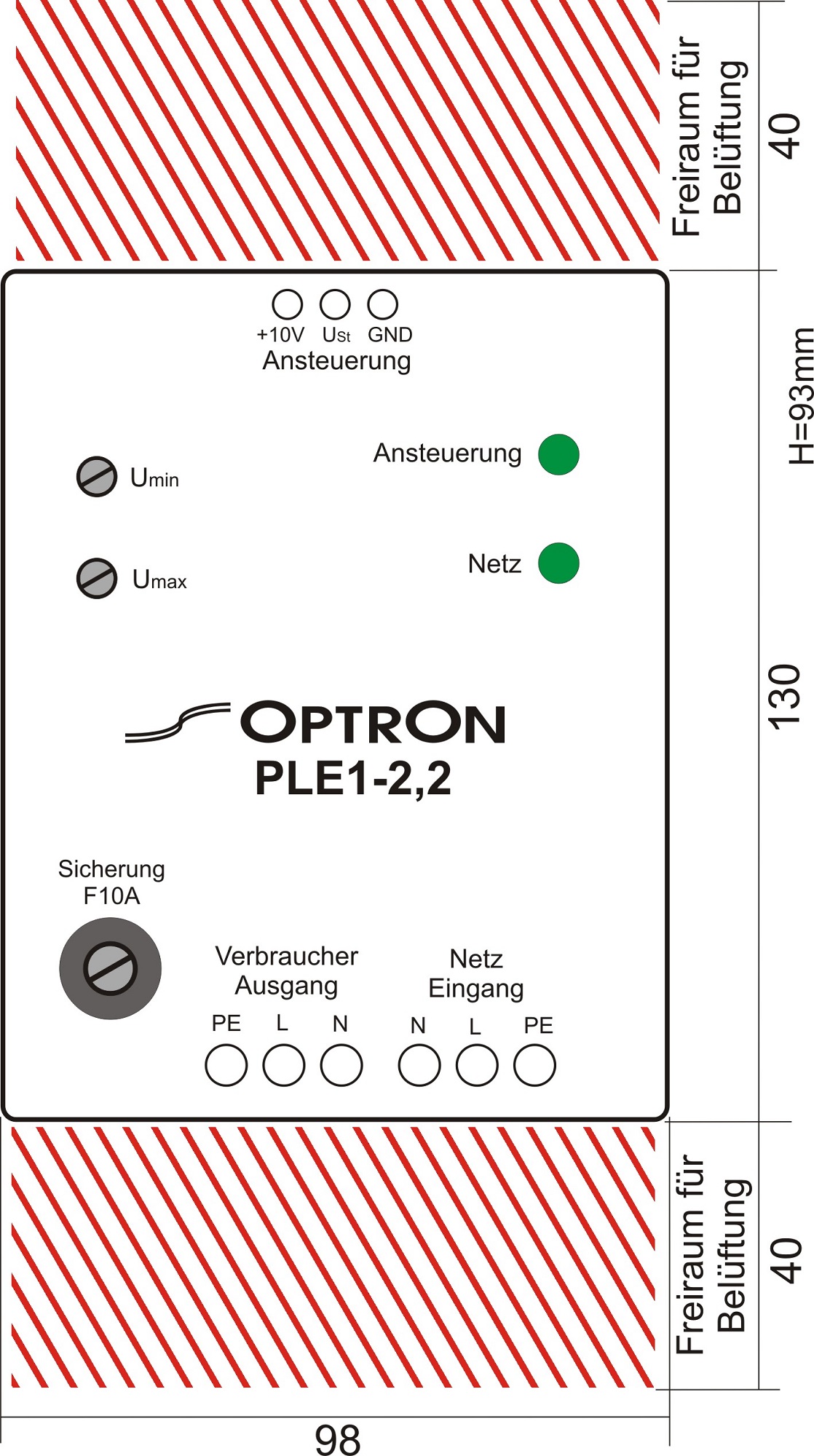

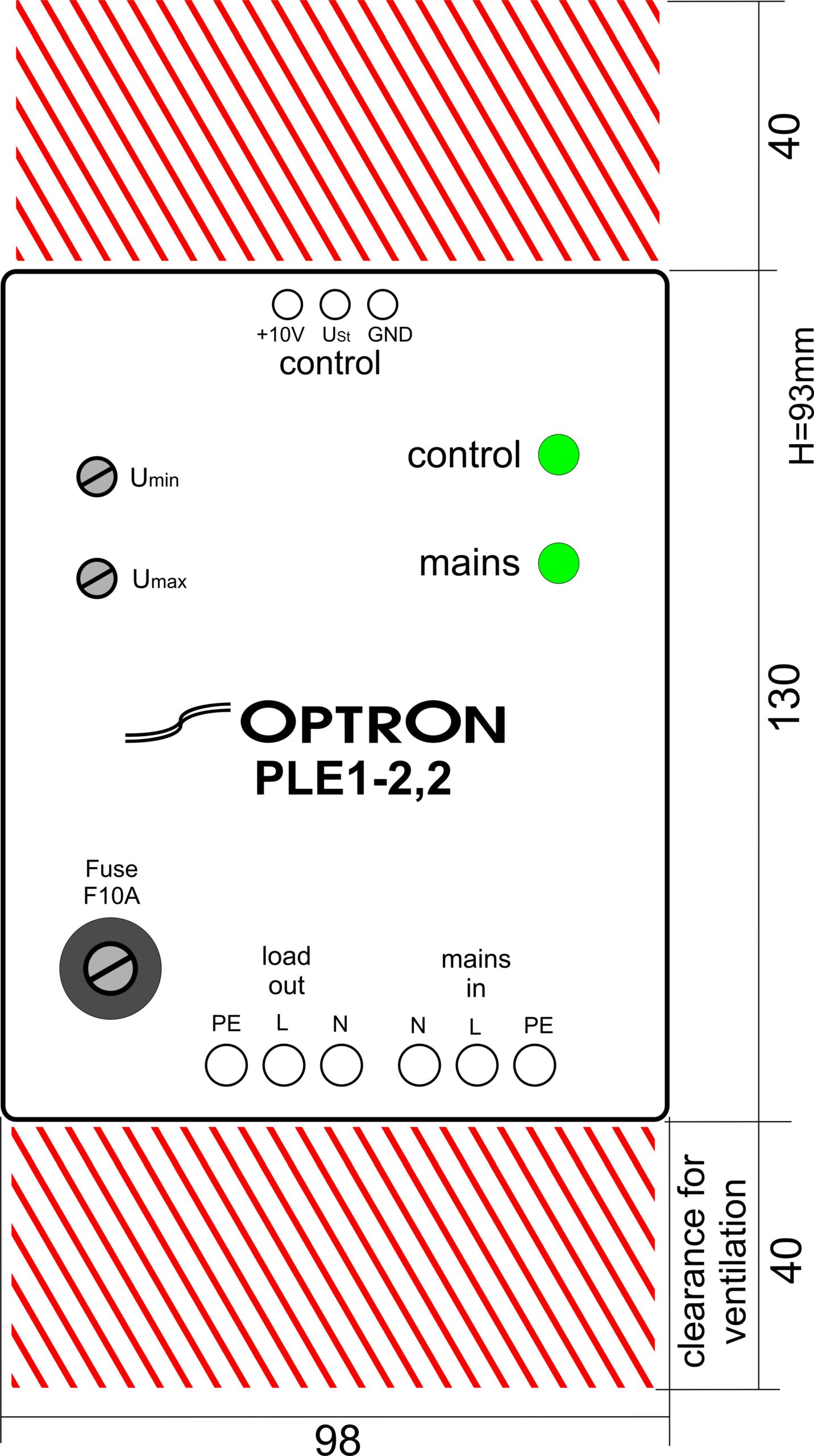

dimensions (WxHxD): 98 x 130 x 93 mm
Article number: 131916
