IRD series - shortwave

single combinable infrared heaters in solid ventilated cassettes, available in different sizes and power classes
the wide range of power classes and lengths perfectly fit to your heating requirement
if you need more length or width, you can arrange more modules side by side or
we design a custom made IR-field for you

Due to its compact design, the Optron® IRD-module series is ideally suited for drying and heating e.g. for running paths in the near of the irradiation area. A main feature is the continous IR emitter for applications with short irradiation distances.

Modules length 160 mm

IRD S160R

Power:
1 x 0.65 kW / 230 V
Dimensions (WxHxD):
160 x 85 x 80 mm

IRD S160Z

Power:
2 x 0.3 kW / 230 V
Dimensions (WxHxD):
160 x 85 x 80 mm

IRD S160D

Power:
3 x 0.3 kW / 230 V
Dimensions (WxHxD):
160 x 85 x 80 mm

Modules length 230 - 270 mm

IRD S230

Power:
1 x 0.5 kW / 230 V
1 x 1.0 kW / 230 V
1 x 1.6 kW / 230 V
Dimensions (WxHxD):
230 x 85 x 80 mm

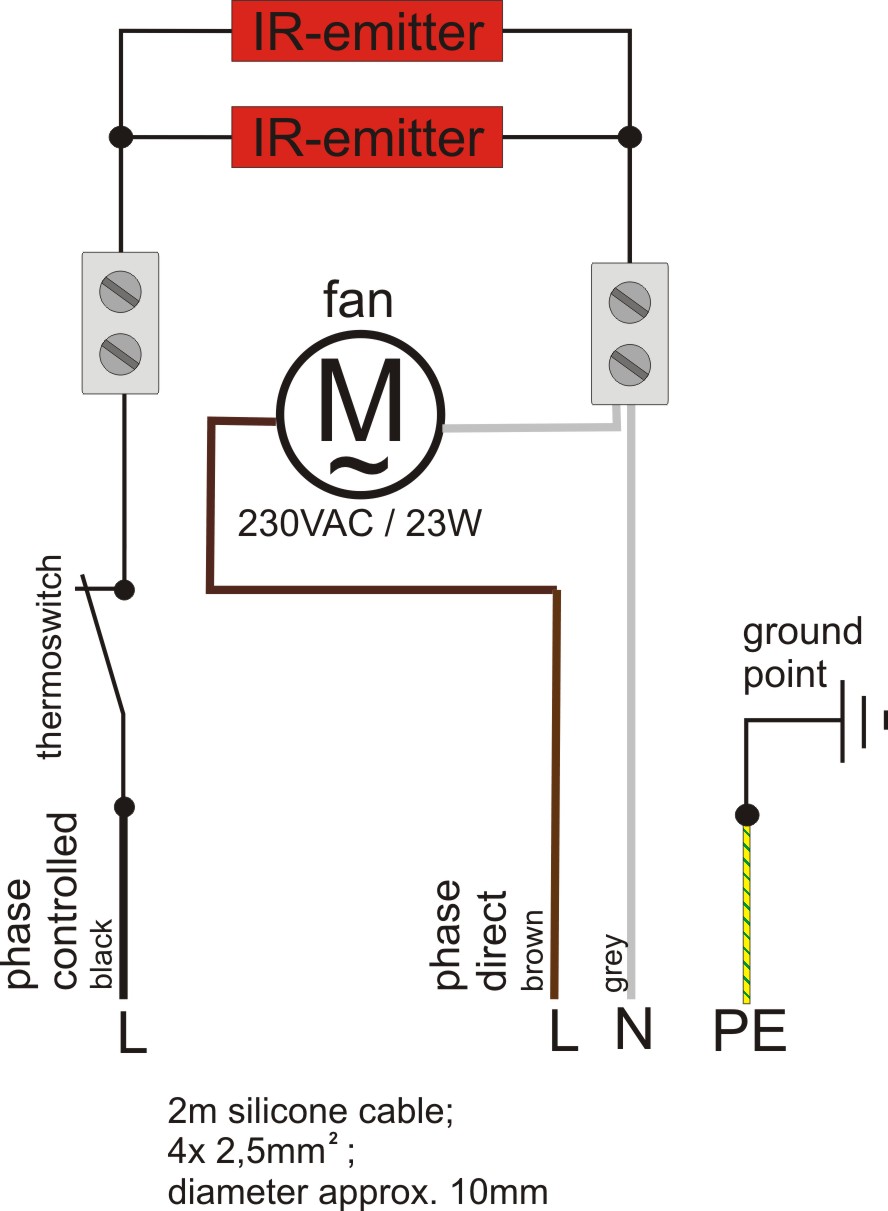

IRD E270Z

Power:
2 x 0.5 kW / 230 V
2 x 1.0 kW / 230 V
2 x 1.6 kW / 230 V
Dimensions (WxHxD):
270 x 160 x 120 mm

IRD E270D

Power:
3 x 0.5 kW / 230 V
3 x 1.0 kW / 230 V
3 x 1.6 kW / 230 V
Dimensions (WxHxD):
270 x 160 x 120 mm

IRD E270V

Power:
4 x 0.5 kW / 230 V
Dimensions (WxHxD):
270 x 160 x 120 mm

Modules length 380 mm

IRD S380 – 1 kW

Power:
1 x 1.0 kW / 230 V
Dimensions (WxHxD):
380 x 85 x 80 mm

IRD S380 – 2 kW / 3 kW

Power:
1 x 2.0 kW / 230 V
1 x 2.0 kW / 400 V
1 x 3.0 kW / 400 V
1 x 3.0 kW / 400 V NIR
Dimensions (WxHxD):
380 x 85 x 80 mm

IRD E380Z

Power:
2 x 1.0 kW / 400 V
2 x 2.0 kW / 400 V
Dimensions (WxHxD):
380 x 160 x 120 mm

IRD E380D

Power:
3 x 1.0 kW / 400 V
3 x 2.0 kW / 400 V
3 x 3.0 kW / 400 V
3 x 3.0 kW / 400 V NIR
Dimensions (WxHxD):
380 x 160 x 120 mm

Modules length 540 mm

IRD S540

Power:
1 x 2 kW / 230 V
1 x 1.7 kW / 400 V
1 x 3 kW / 400 V
Dimensions (WxHxD):
540 x 85 x 80 mm

IRD E540Z

Power:
2 x 3.0 kW / 400 V
Dimensions (WxHxD):
540 x 160 x 120 mm

Modules length 750 mm

IRD S750 1.5 kW / 3 kW

Power:
1 x 1.5 kW / 400 V
1 x 3.0 kW / 400 V
Dimensions (WxHxD):
750 x 85 x 80 mm

IRD S750 – 4 kW

Power:
1 x 4.0 kW / 400 V
Dimensions (WxHxD):
750 x 85 x 80 mm

IRD S750Z

Power:
2 x 3.0 kW / 400 V
Dimensions (WxHxD):
750 x 85 x 80 mm

IRD E750Z

Power:
2 x 3.0 kW / 400 V
Dimensions (WxHxD):
750 x 160 x 120 mm

IRD E750D

Power:
3 x 3.0 kW / 400 V
Dimensions (WxHxD):
750 x 160 x 120 mm

IRD E750V

Power:
4 x 3.0 kW / 400 V
Dimensions (WxHxD):
750 x 160 x 120 mm

Modules length 1121 mm

IRD S1121

Power:
1 x 6.0 kW / 400 V
Dimensions (WxHxD):
1121 x 85 x 80 mm

IRD E1121Z

Power:
2 x 6.0 kW / 400 V
Dimensions (WxHxD):
1121 x 160 x 120 mm

Modules length 1480 mm

IRD S1480

Power:
1 x 8.5 kW / 400 V
Dimensions (WxHxD):
1480 x 85 x 80 mm

IRD E1480Z

Power:
2 x 8.5 kW / 400 V
Dimensions (WxHxD):
1480 x 160 x 120 mm

Modules length 2140 mm

IRD S2140

Power:
1 x 13 kW / 400 V
Dimensions (WxHxD):
2140 x 85 x 80 mm

IRD E2140Z

Power:
2 x 13 kW / 400 V
Dimensions (WxHxD):
2140 x 160 x 120 mm
